Temporary Pavilion Design - Spring 2023
Rhino - Grasshopper - Lumion
![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/f249a706-a92f-4aac-8a5c-20c7226432fe_rw_3840.jpg?h=0f8a8b127513cb5fe1d4c95af07de262)

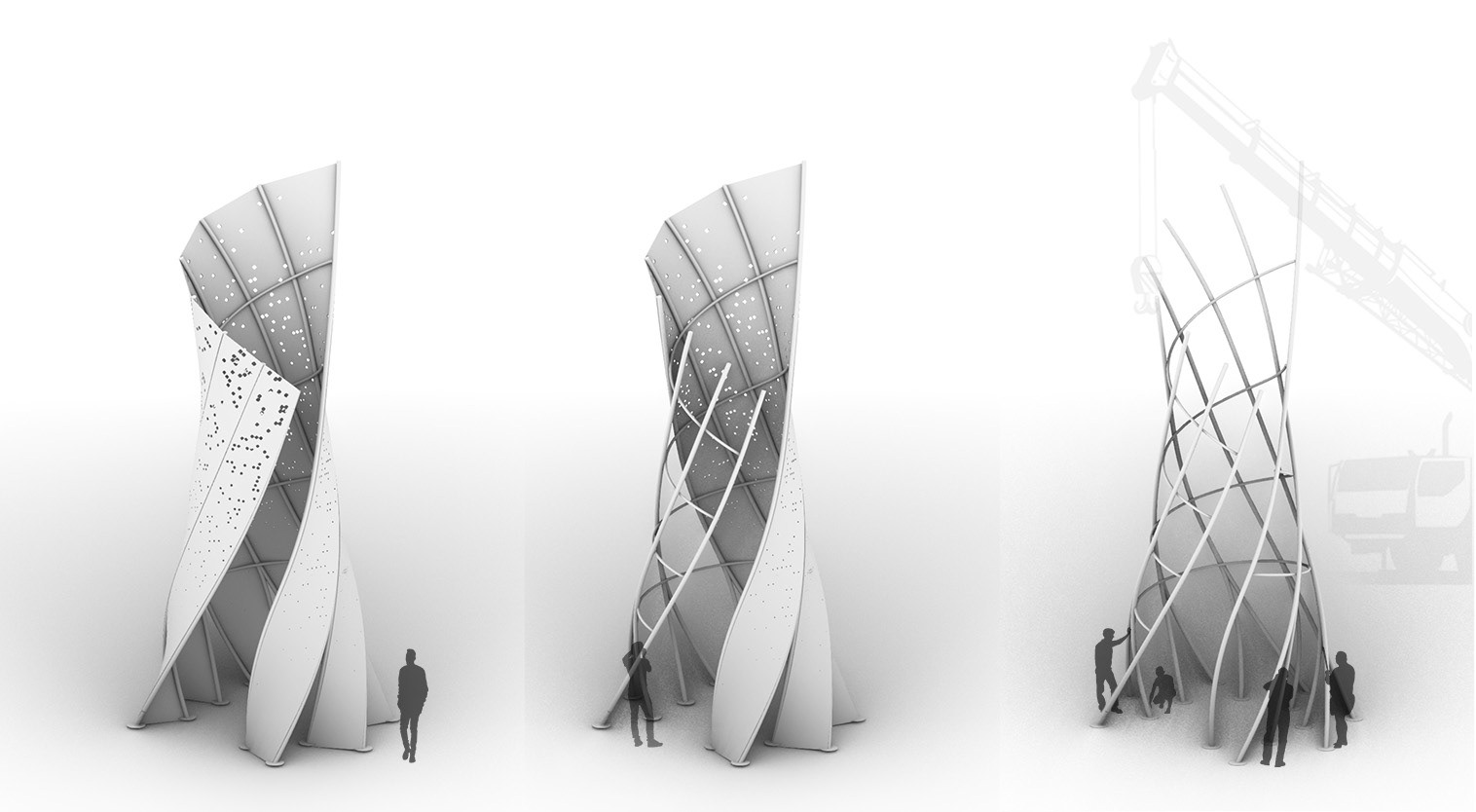

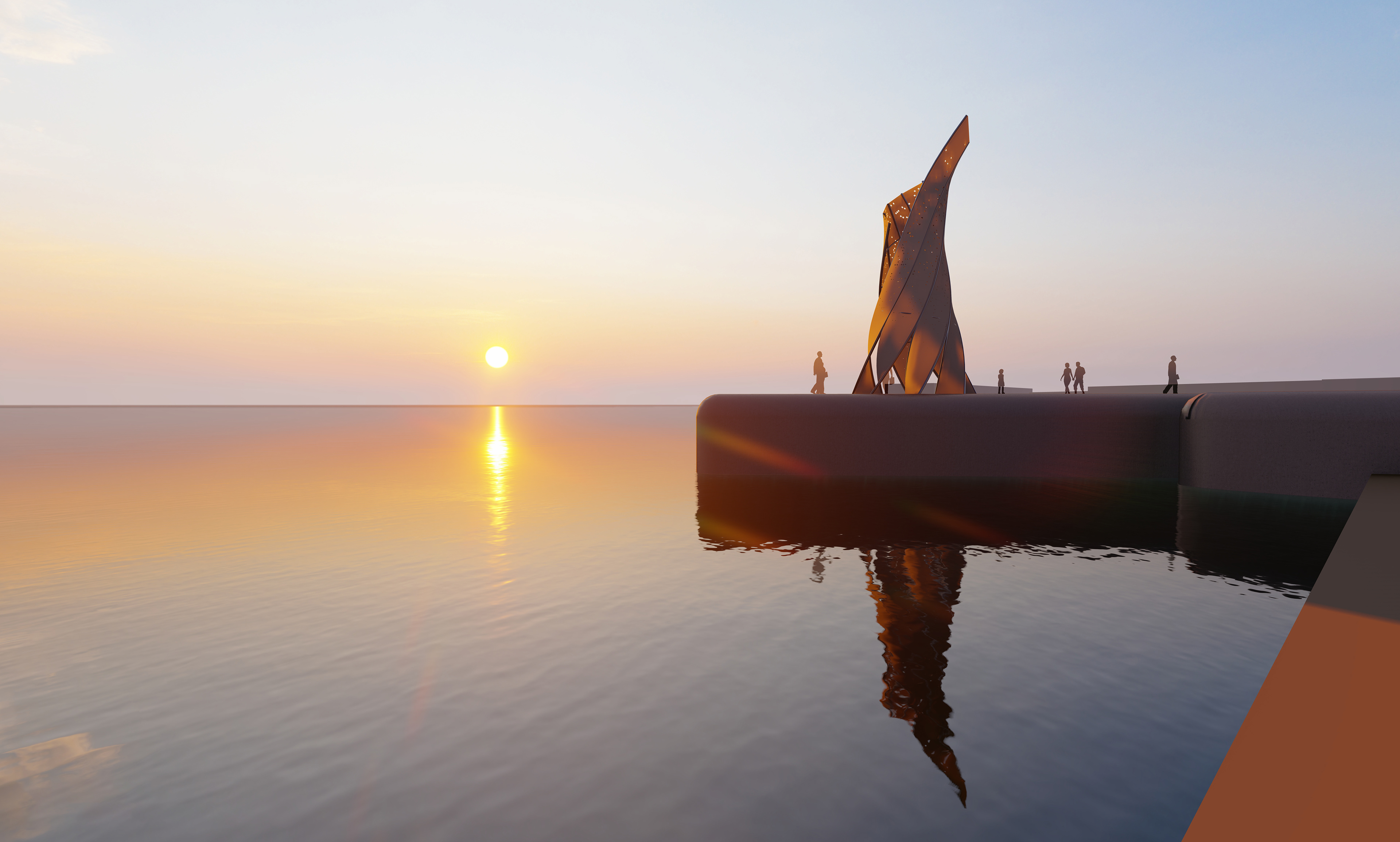

The new addition to Crane Cove Park is a temporary pavilion inspired by lighthouses. The designer used tubes and fabric to create a tower-like structure that sits over the water. The pipes were horizontally positioned with a turning effect, allowing the fabric to drape over them, resulting in a unique design. The interior is equally impressive, with shorter pipes allowing light to penetrate and create a beautiful effect visible from the top.
![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/56a07e5a-7b94-41fe-a425-cf190063476d_rw_1200.jpg?h=b4b8dee7067ae8e525f5992d02bb153d)
![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/cc3c204e-d967-4eea-9d2b-a21f57773173_rw_1200.jpg?h=8a91501ec0ff8a2f85cf5c2de4350812)

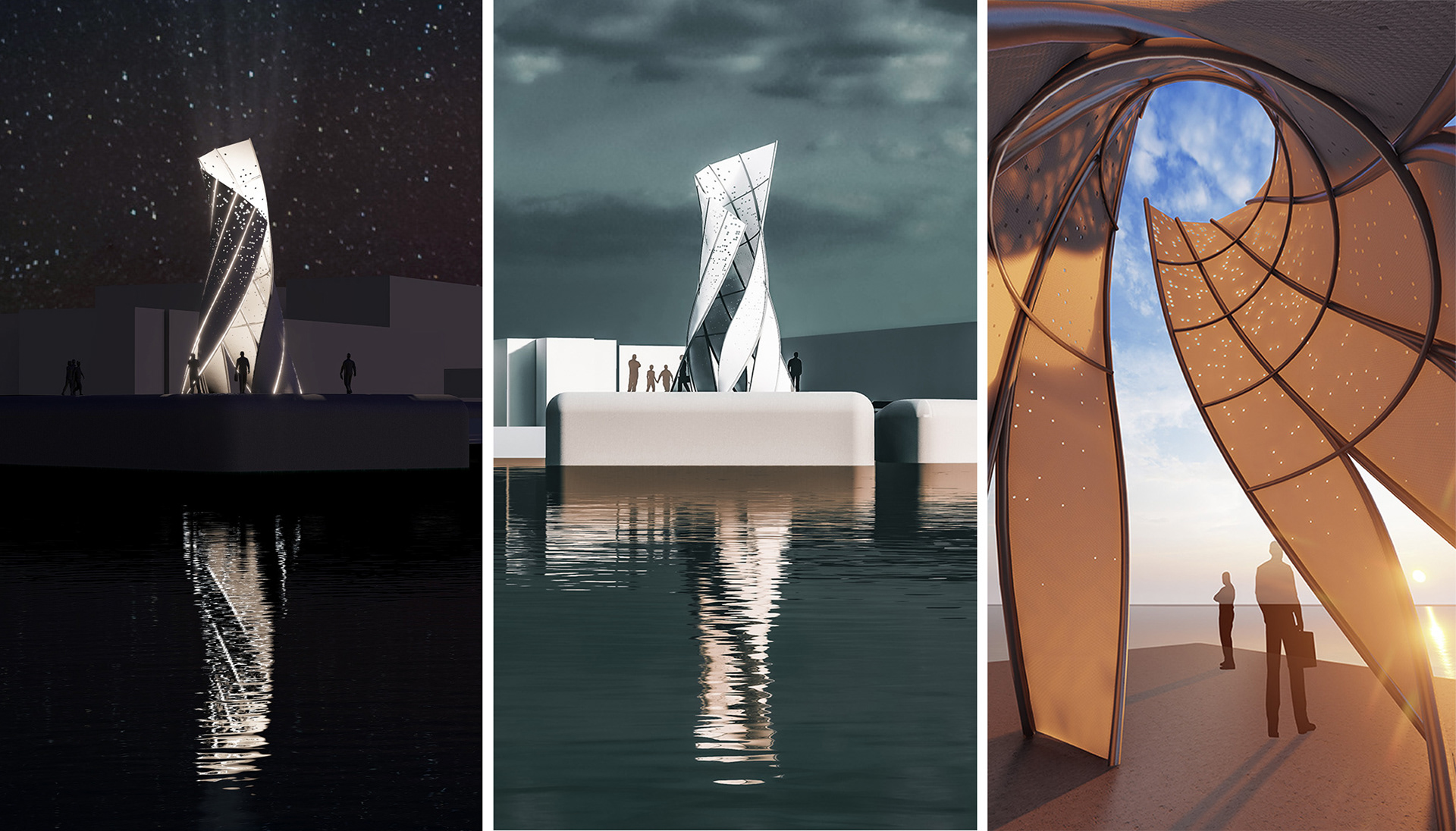

The pavilion's lighting design was carefully planned to enhance its beauty. Perforations in the fabric create a gradient effect, allowing light to penetrate and illuminate the interior while creating an eye-catching visual effect outside. Linear lights attached to the main structure highlight the turning pipes, creating a bold look at night. These design elements work together to create a visually stunning experience day and night.
![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/170d3ce7-f4db-4495-8b0f-a3269fc652f4_rw_1920.jpg?h=4b63361823cf5a6f91ec909c5e9e13ac)
![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/5fc9b102-6035-445e-9a99-7e4b2aa728c9_rw_1920.jpg?h=008b7cd7b22bcd95d329e2244b7b8c8c)
Animations:
![Construction Detail](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/8ece67f3-2399-4626-9309-81e6a221302a_rw_1920.gif?h=086a76e3e29ff955652931617c647bd0)

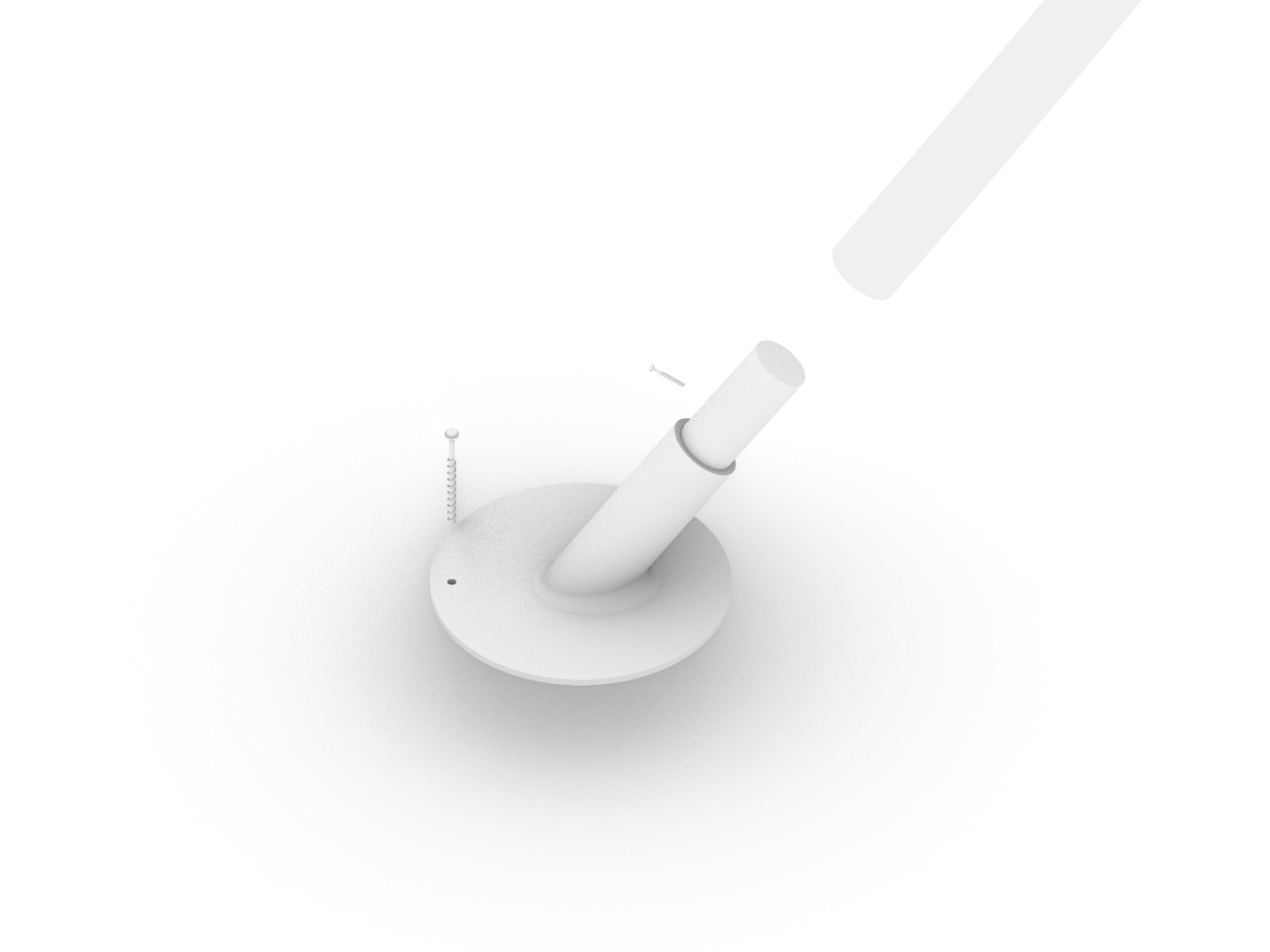

Construction Detail
