Kinetic Staircase - CCA Transtudio - Spring 2023
Rhino - Grasshopper - 3D Printing - Laser Cutting

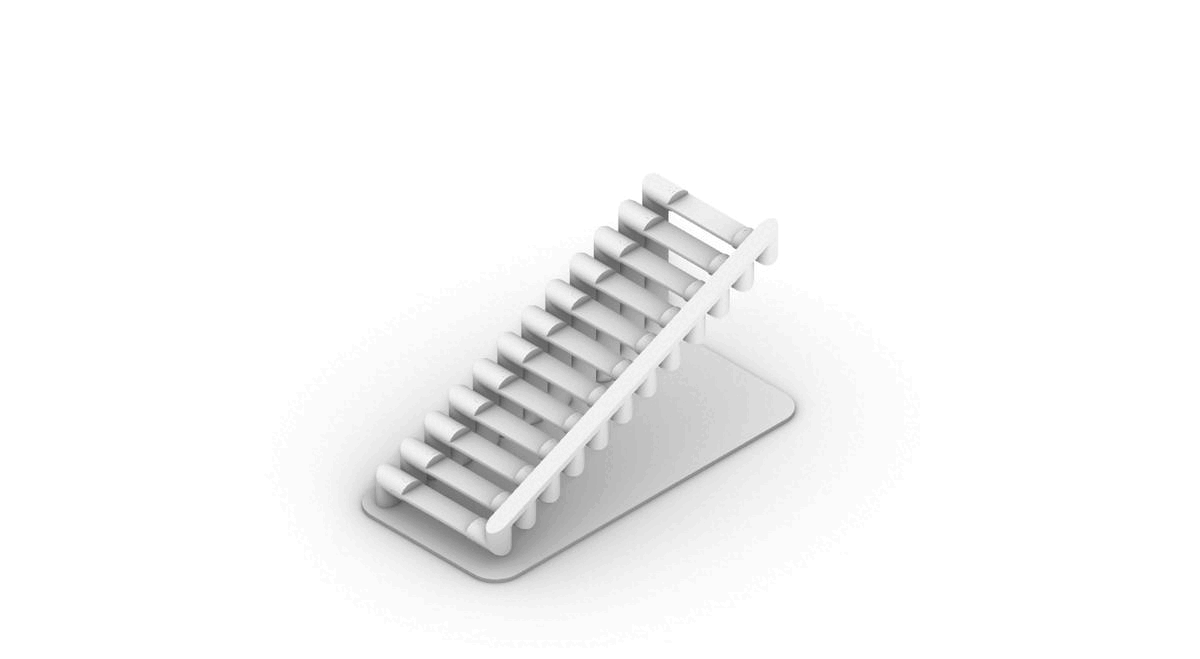

![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/5e811bb7-6e65-4499-b34f-bfbb4f1b68f3_rw_1200.gif?h=a6c7b6dcb89dae02cdaca765f4c3f74c)

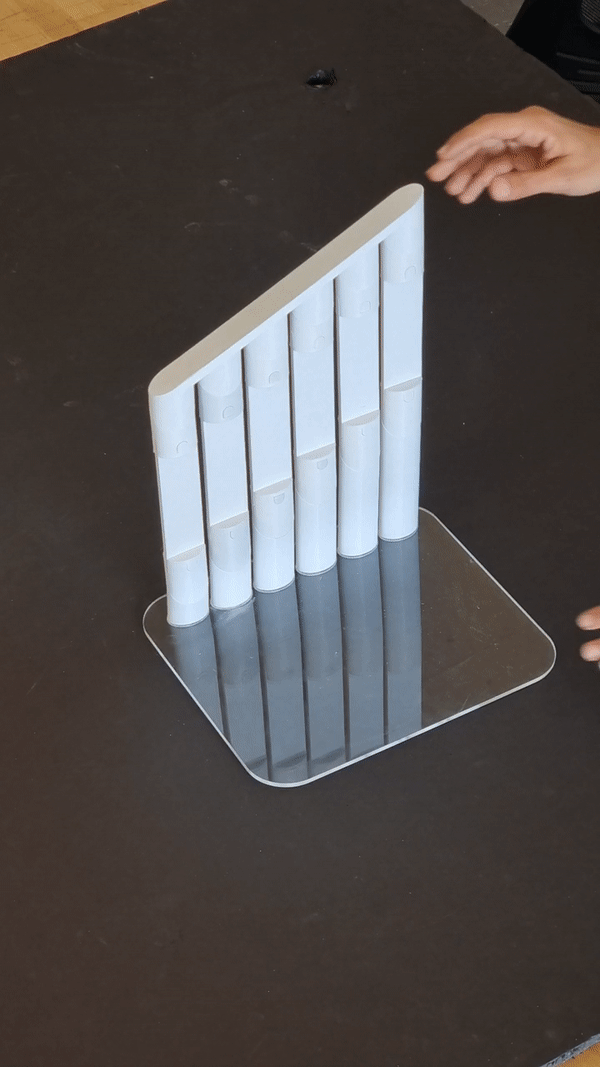

The approach in the stair+ project was to create a moving staircase. In our project the concept development started by designing a rotating staircase that the steps are going to be hidden in the wall and provide a more open space when it is not using. In the design process we designed two different joints with same mechanisms. To achieve this goal we had to design a joint that is rotating in two angles at the same time. There was several challenges in the development phase of our first design; So we continued working on our second idea that provided us two approaches to study and explore. In the first one staircase was dancing to be parallel to a wall holding it and the second one which we fully developed is supported in the floor and act as a wall, partition and a shader itself.

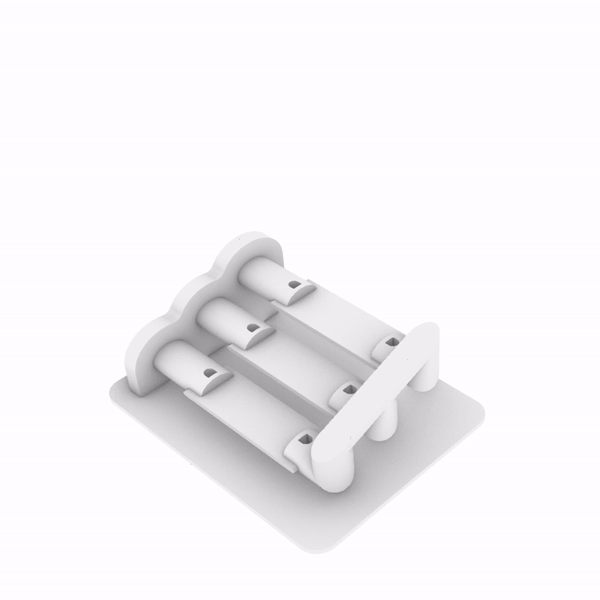

![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/3b912513-5709-48c6-bd20-6d26a03b5cee_rw_600.gif?h=d711c07584cabb632c1388474494aa35)

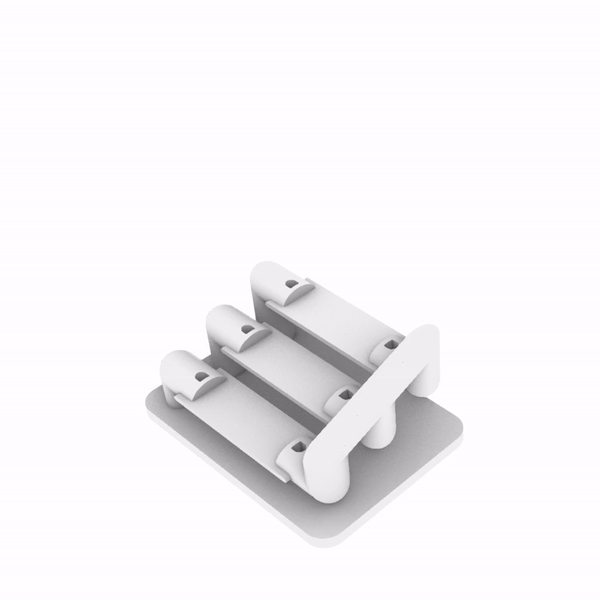

![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/05b6893e-f6b9-46b1-8808-ac9413b338b3_rw_600.gif?h=4b686148dbc7f93a51833bab514f83c4)
![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/45d44ae5-f73b-43c4-bb71-63c1d6403d7c_rw_1200.png?h=fb847a07ba985028d2d732f35afbbc04)

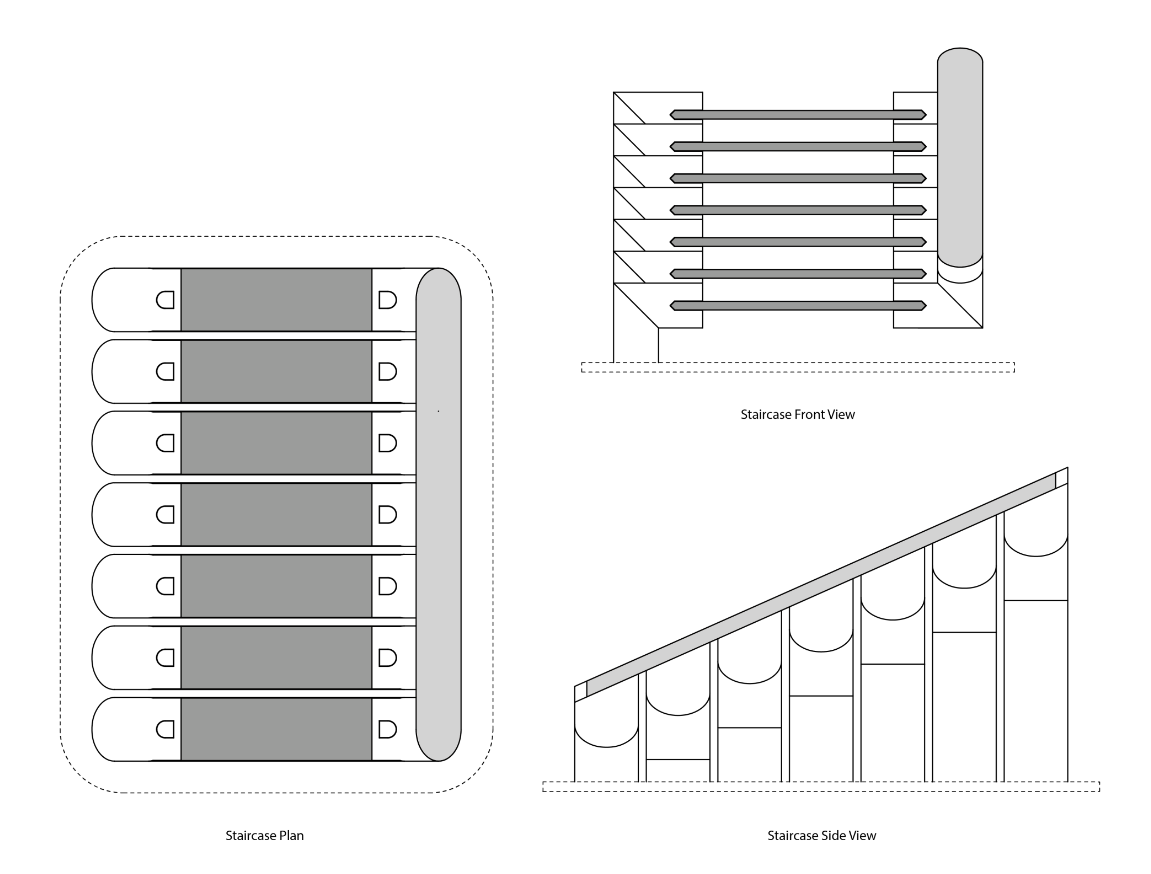

![](https://cdn.myportfolio.com/c5c16b16-060b-4a24-8fc1-851f08e266d4/3da5f18c-d77a-4cc5-85fa-97b9bf25a9f6_rw_1200.png?h=8bf9b6d813fee200589021183a4e2a17)

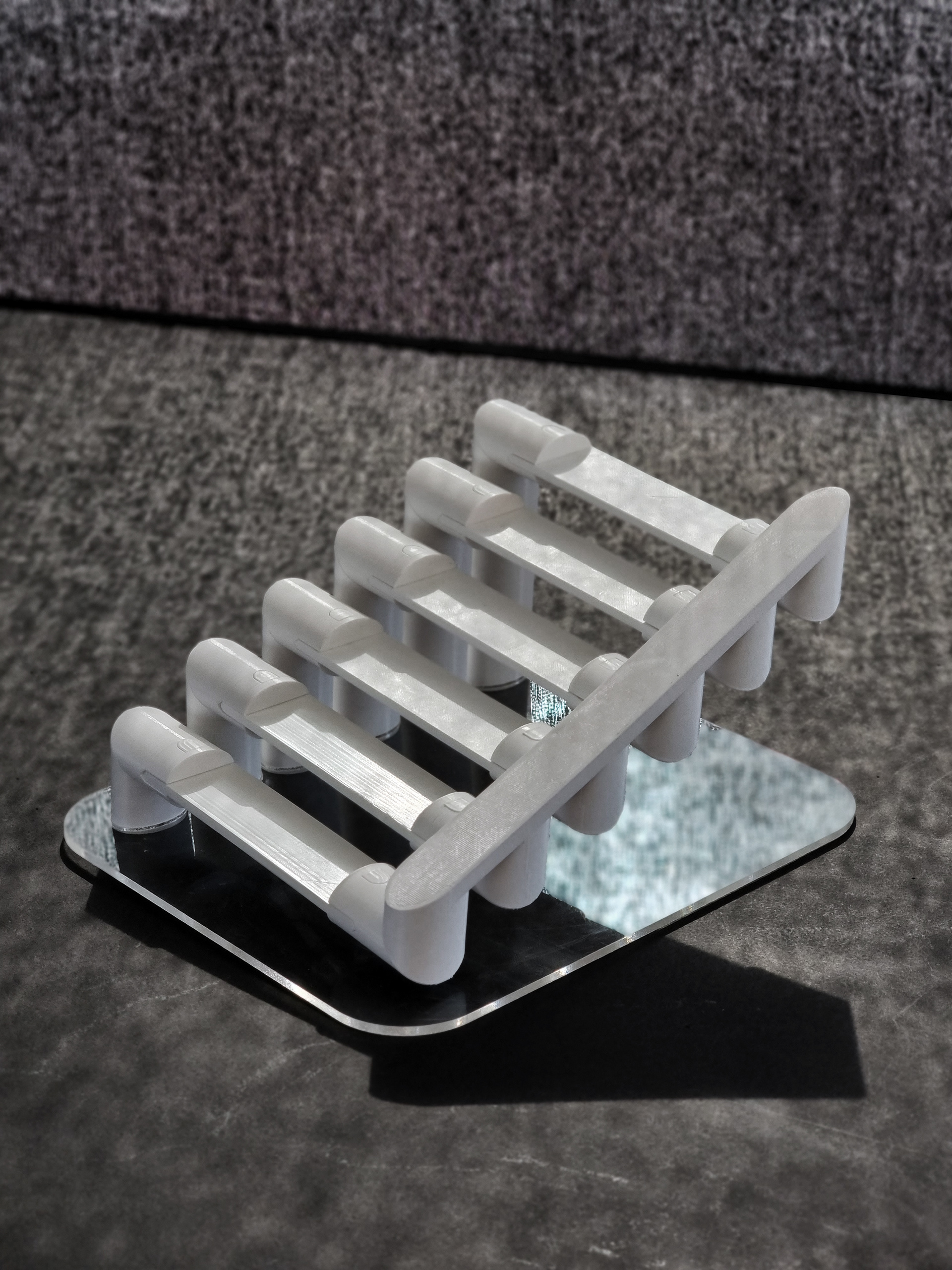

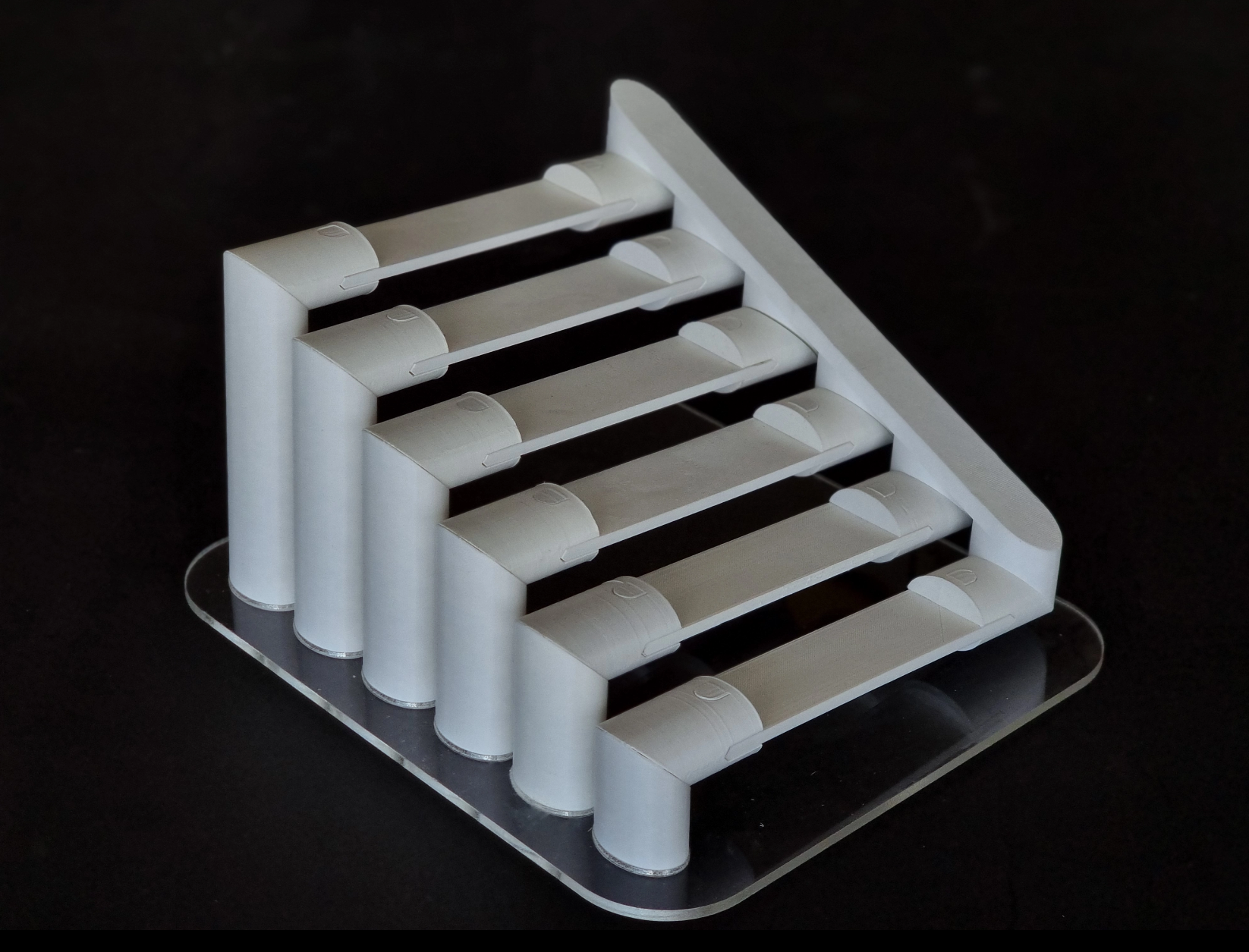

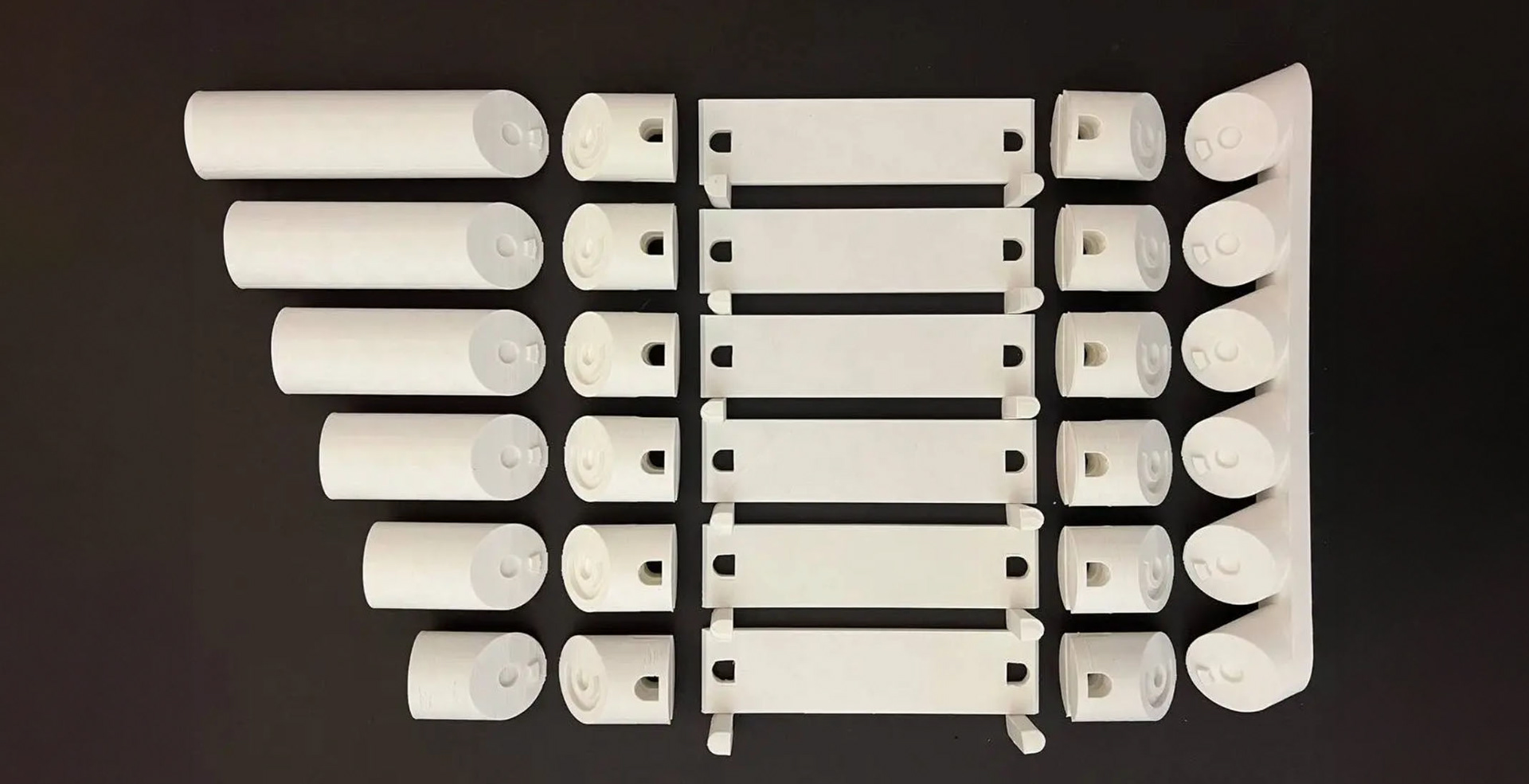

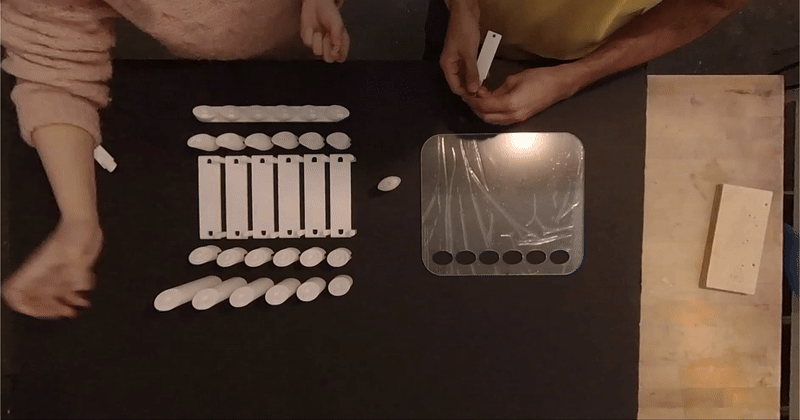

Assembly Process:
